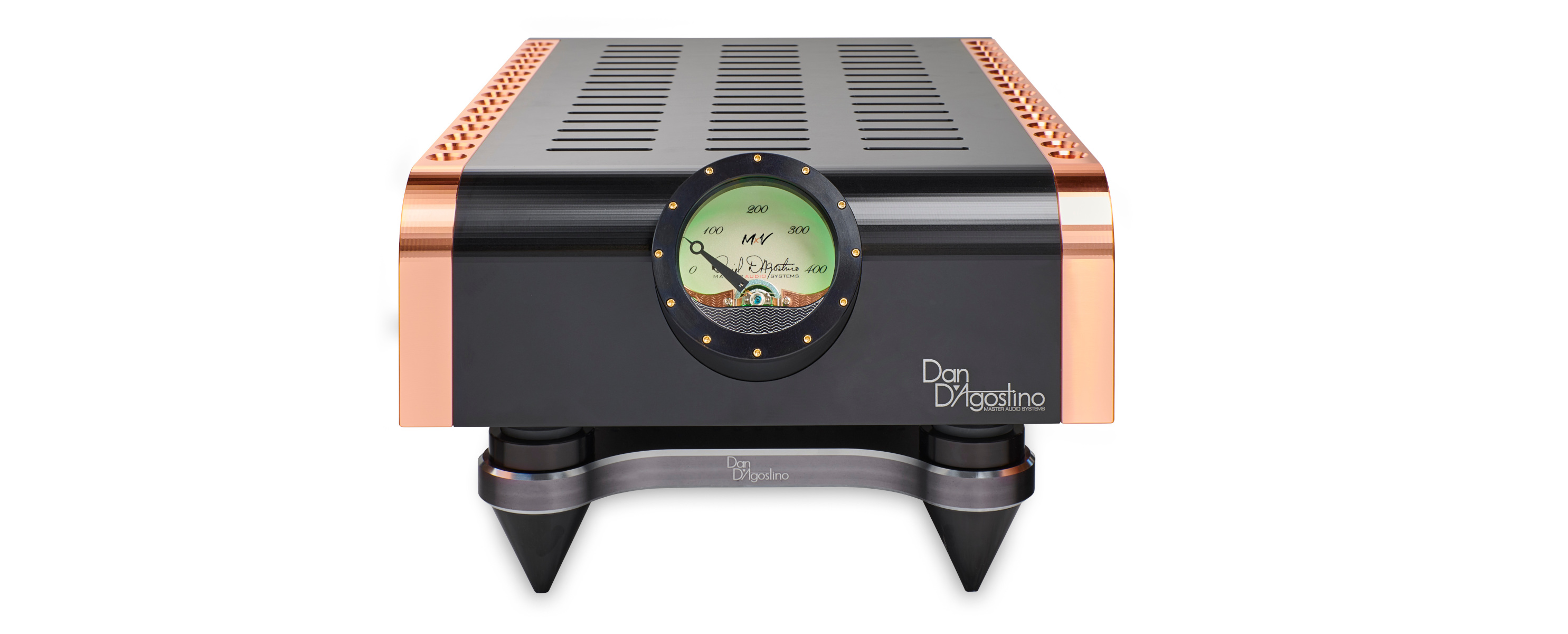

Momentum Mono M400 MxV
Finale mono stato solido in classe A (400,800,1600W/CH 8,4,2 Ohm), silver o black
Amplificatore a Stato Solido
The original Momentum Mono Amplifier was the first product designed and manufactured by the company and the latest version, the Momentum M400 MxV Mono amplifier elevates this iconic design to its greatest height. The Momentum M400 MxV models feature techniques and topologies initially developed and implemented in the Relentless Mono Amplifier. This fullest expression of the Momentum circuitry is reflected in the new model name, MxV. Those with a physics background will recognize that MxV or Mass times Velocity is the equation for Momentum.
Every major section of the amplifier - power supply, input, driver, and output stages - have all been enhanced in this advancement. A new transformer winding pattern provides over 50% more current output from the same transformer footprint. This additional current offers greater headroom during dynamic passages. A reinvisioned input stage combines a brand new circuit topology with advanced components feeding the driver and output stages. Crucial to the new circuit are the bipolar transistors powering the front end of the amplifier. In the Momentum M400 MxV amplifiers, new devices deliver ten times the current and power of the original devices. These wider bandwidth, higher power components extend low and high frequency performance with reduced distortion in both frequency extremes. Energizing the driver stage is a new bias stability circuit providing a nearly 50% increase in operating bias. Increasing Class A operation directly correlates to better sound quality. However, there is a limit to bias level in any amplifier. With this new circuit topology and our unique Copper heatsinks, thermal issues are not a practical concern in the Momentum M400 MxV amplifiers. The new bias scheme ensures bias consistency, preventing excessive temperatures even under the greatest demand. Additional power transistors in the output stage reduce workload for each device. By minimizing stress on each individual device, the entire output section works more efficiently. The result is a richer, more dynamic, intimate presentation regardless of musical genre. The final output stage features new output transistors that were originally sourced for the flagship Relentless Monoblock Amplifier. The high-output transistors used on the Momentum M400 MxV are among the fastest available. Using 26 on the Momentum M400 MxV amplifiers they run at a blistering 69 MHz, permitting the Momentum M400 MxV to achieve incredible bandwidth. Each transistor mounts with two stainless steel fasteners—a rarity among flat-package transistors—for maximum thermal transfer to the copper heat sinks. A capacitor/resistor network connected to the base of each transistor ensures stability even at high frequencies and with low-impedance speakers. Additionally, every output transistor is measured and only devices that match the required performance specifications are included in the production of Momentum M400 MxV amplifiers. As with all D'Agostino models, the Momentum M400 MxV amplifiers feature discrete, direct-coupled balanced circuitry, the most accurate circuit platform possible.
The new Momentum M400 MxV employs the same chassis as previous Momentum amplifiers. All generations of Momentum Mono amplifiers can be upgraded to the Momentum M400 MxV performance level. All electrical enhancements are included in the upgrade while the original metalwork is retained. Original Momentum amplifiers receive a new 400 Watt meter plate reflecting the power output increase included in the upgrade. Momentum M400 units already have this power increase and meter.
Specifiche

Potenza 8Ω 400 watts 4Ω 800 watts 2Ω 1,600 watts

Risposta in Frequenza 1 Hz to 200 kHz, -1 dB 20Hz to 20 kHz, ±0 dB

Distorsione (@ 400 watts / 8Ω) <.01 dB at 1 kHz <.05 dB at 20 kHz

Rapporto segnale/rumore 105 dB, A-pesato

Guadagno 26.5 dB

Consumo in Standby <1 watt

Ingressi 1 balanced XLR 1 unbalanced RCA

Uscite High-quality binding posts

Peso 40,8 kg

Dimensioni 10 x 31.5 x 45.4 cm (hlp)
