Dopo il grandissimo successo del JAZZ, Nagra ha deciso di fare un passo in avanti andando alla ricerca di quel suono incredibile e musicale dei predecessori ma dotandolo della dinamica e del dettaglio del JAZZ.

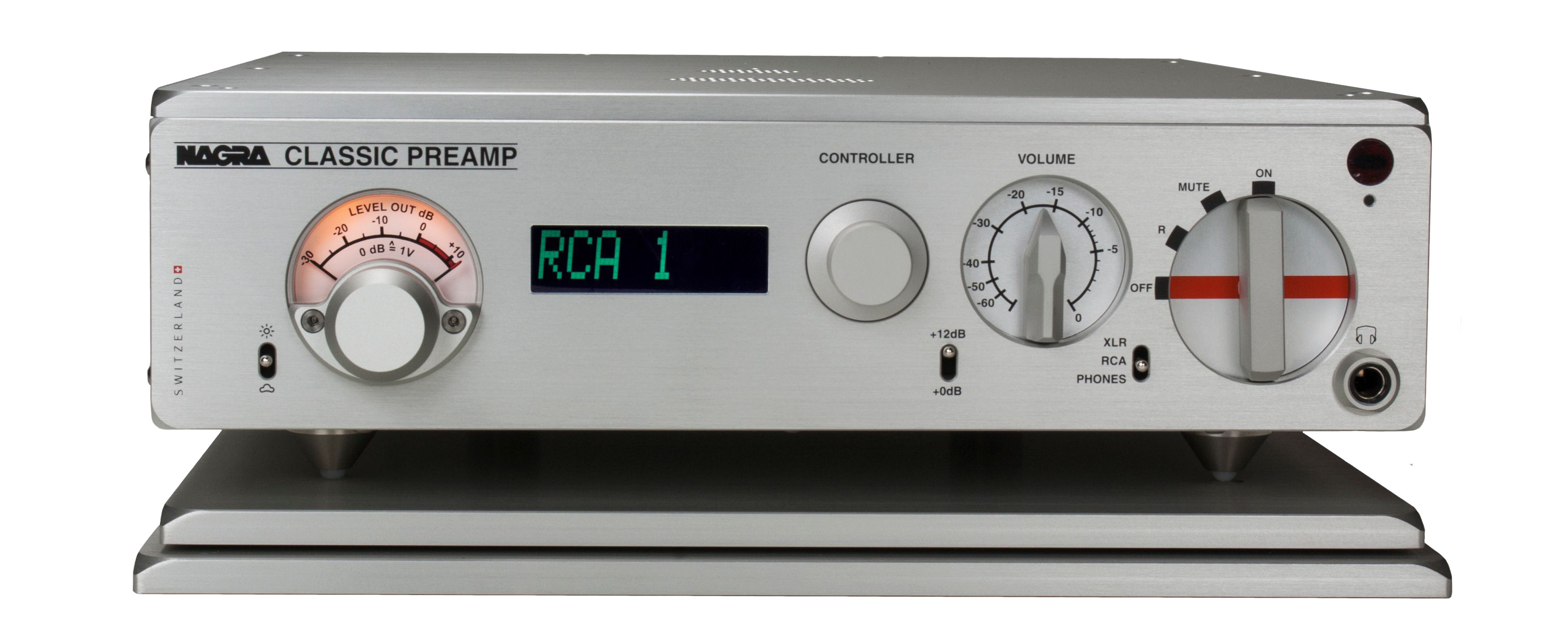

Nasce così il CLASSIC PREAMP che va ad affiancare alla perfezione il finale CLASSIC AMP permettendo agli appassionati di creare un impianto ai massimi livelli capace di entrare in spazi molto contenuti con la stessa qualità.
TECHNICAL SPECIFICATION
ELECTRONICS
Frequency response: |
10 Hz – 50 kHz (+0 / -0.5 dB) |
Dynamic range: |
>125 dB (Gain at +12 dB) |
Minimum input level to reach 0 dB (meter): |
0.28 V rms (Gain at +12 dB) |
Maximum input level to reach 0 dB (meter): |
>25 V rms (Gain at 0 dB) |
Crosstalk: |
>85 dB |
Total harmonic distortion (THD): |
<0.01% at 1 kHz out, no load |
Input impedance: |
50 KΩ |
Output impedance: |
6 Ω |
Vacuum tubes (selected by Nagra Laboratory): |
2x 12AX7 / ECC83
1x 12AT7 / ECC81 |
Power consumption: |
12 V 1040 mA
< 1o mW in standby |
Power supply: |
115 V or 230 V AC input |
CONNECTIONS
Inputs: |
XLR
RCA 1 to 4 |
Outputs: |
2 x XLR
1 x RCA |
GENERAL
Dimensions: |
379 x 277 x 76mm (12.2 x 10 x 3 inches) |
Weight: |
4.9 Kg (10.8 lbs) |
